Item # AOP L513ED
LED 5MM RED DIFFUSED
Unit Price: $0.15000 / EA
- Quantity Available: 2,064
- Minimum Order Qty: 1
- Pkg Qty: 500
- Case Qty: 500
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $0.15000 | $0.15 |
| EA | 25 | $0.11000 | $2.75 |
| EA | 50 | $0.09000 | $4.50 |
| EA | 100 | $0.08000 | $8.00 |
| EA | 250 | $0.07000 | $17.50 |
| EA | 500 | $0.05000 | $25.00 |
| EA | 1,000 | $0.04000 | $40.00 |
Click image to enlarge

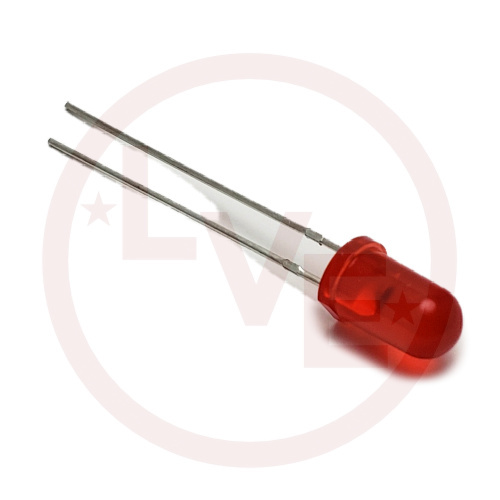

AOP L513ED
LED 5MM RED DIFFUSED
- UM: EA
- Brand: AMERICAN OPTO PLUS
Specifications
| Manufacturer | American Opto Plus |
| Color | Red |
| Voltage Rating | 2.0V |
| Current | 20mA |
| Lens Color | Red Diffused |
| Lens Transparency | Diffused |
| Lens Style | Round w/Flange |
| Lens Size | 5mm |
| Height | - |
| Millicandela Rating | 30mcd |
| Viewing Angle | 45 DEG |
| Wavelength Peak | 635nm |
| Mounting Type | Through Hole |
| Part Status | Active |
