Item # MACROMATIC TR-6512U
RELAY TIMER 10A 24-240VAC/12-125VDC 8 PIN OCTAL
Unit Price: $105.95000 / EA
- Quantity Available: 6
- Minimum Order Qty: 1
- Pkg Qty: 1
- Case Qty: 1
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $105.95000 | $105.95 |
| EA | 5 | $98.89000 | $494.45 |
| EA | 10 | $93.95000 | $939.50 |
Click image to enlarge

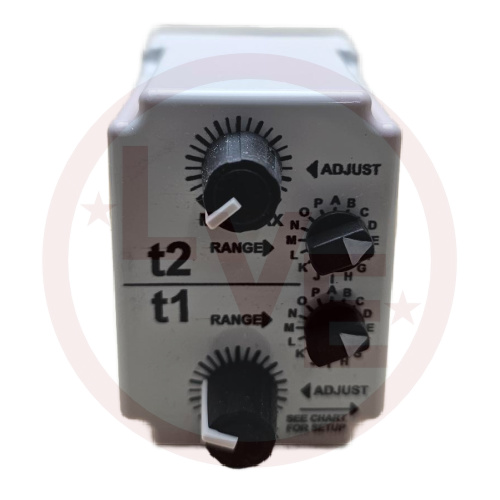

MACROMATIC TR-6512U
RELAY TIMER 10A 24-240VAC/12-125VDC 8 PIN OCTAL
- UM: EA
- Weight: 0.40 LBS
- Brand: MACROMATIC
ADJUSTABLE TIME RANGER
Replaces #SS-65122
Specifications
| Manufacturer | Macromatic |
| Current Rating (Amps) | 10A |
| Voltage | 24 - 240VAC, 12 - 125VDC |
| Delay Time | Programmable .05 Sec - 100 Hrs |
| Circuitry | DPDT (2 Form C) |
| Function | Programmable (Multi-Function) |
| Timing Adjustment Method | Hand Dial |
| Termination Style | Plug In |
| Mounting Type | Socketable |
