Item # MOLEX 120091-0004
CONNECTOR 3 POS NANO-CHANGE (M8) ATTACHABLE CONNECTOR
Unit Price: $29.65000 / EA
- Minimum Order Quantity: 1
- Package Quantity: 1
- Case Quantity: 1
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $29.65000 | $29.65 |
| EA | 5 | $28.17000 | $140.85 |
Click image to enlarge

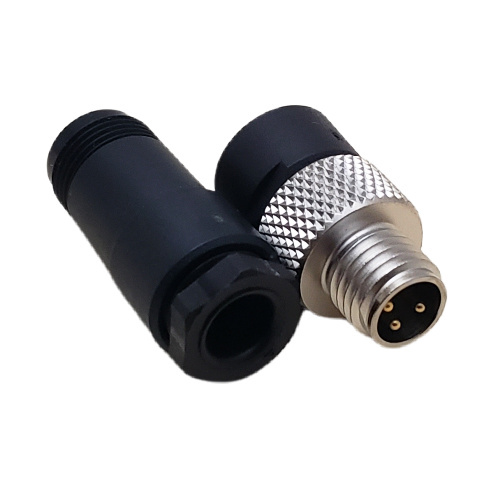

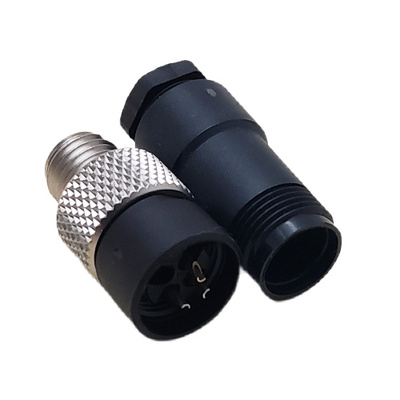

MOLEX 120091-0004
CONNECTOR 3 POS NANO-CHANGE (M8) ATTACHABLE CONNECTOR
- UM: EA
- Weight: 0.04 LBS
- Brand: MOLEX
STRAIGHT MALE
Specifications
| Manufacturer | Molex |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 3 |
| Current Rating (Amps) | 4A |
| Voltage Rating | 60VAC, 75VDC |
| Cable Opening | .138"-.197" (3.50mm-5.00mm) |
| Shell Size/Insert | M8-3 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Contact Finish-Mating | Gold |
| Ingress Protection | IP67-Dust Tight, Waterproof |
| Color | Black/Silver |
| Part Status | Active |
Documents
×
